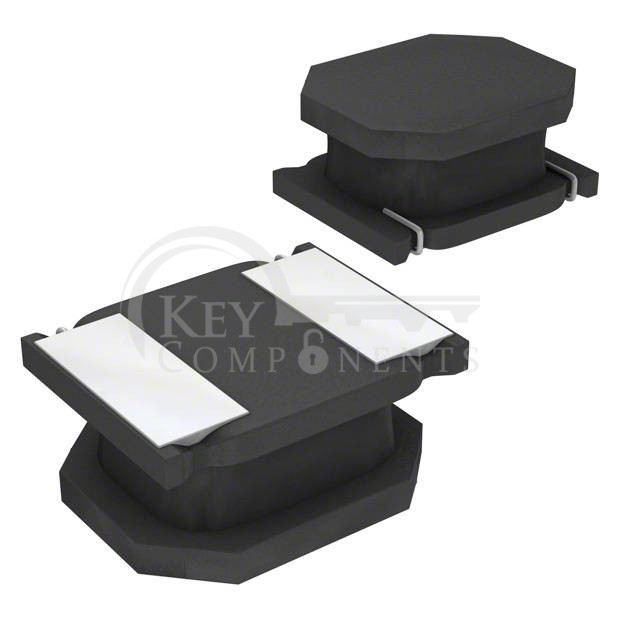

ASPI-2010-2R2M-T

ASPI-2010-2R2M-T

Manufacturer Part ASPI-2010-2R2M-T
Manufacturer Abracon LLC
Description FIXED IND 2.2UH 1.2A 264MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):1.2 A
Current - Saturation (Isat):1.45A
Shielding:Shielded
DC Resistance (DCR):264mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.039" (1.00mm)
