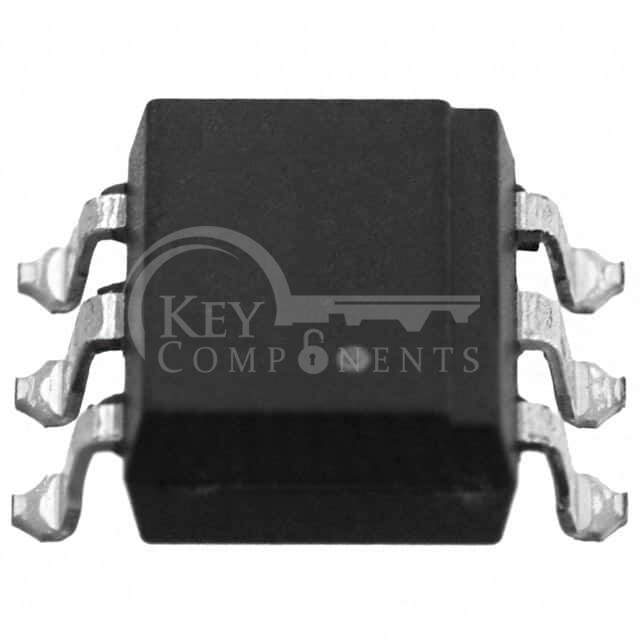

4N25-300E

4N25-300E

Manufacturer Part 4N25-300E
Manufacturer Broadcom Limited
Description OPTOISO 2.5KV TRANS W/BASE 6SMD
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):20% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):3µs, 3µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):30V
Current - Output / Channel:100mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):80 mA
Vce Saturation (Max):500mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
