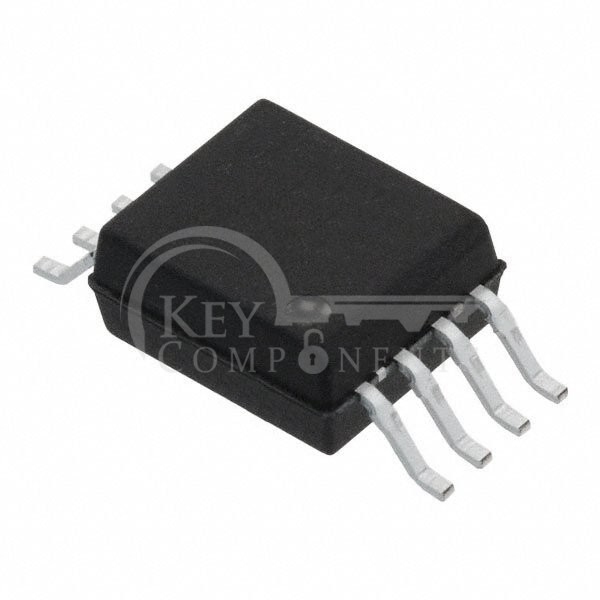

ACPL-H312-560E

ACPL-H312-560E

Manufacturer Part ACPL-H312-560E
Manufacturer Broadcom Limited
Description OPTOISO 3.75KV 1CH GATE DRVR 8SO
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):15kV/µs
Propagation Delay tpLH / tpHL (Max):500ns, 500ns
Pulse Width Distortion (Max):300ns
Rise / Fall Time (Typ):50ns, 50ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:8-SO Stretched
Approval Agency:CSA, IEC/EN/DIN, UR
