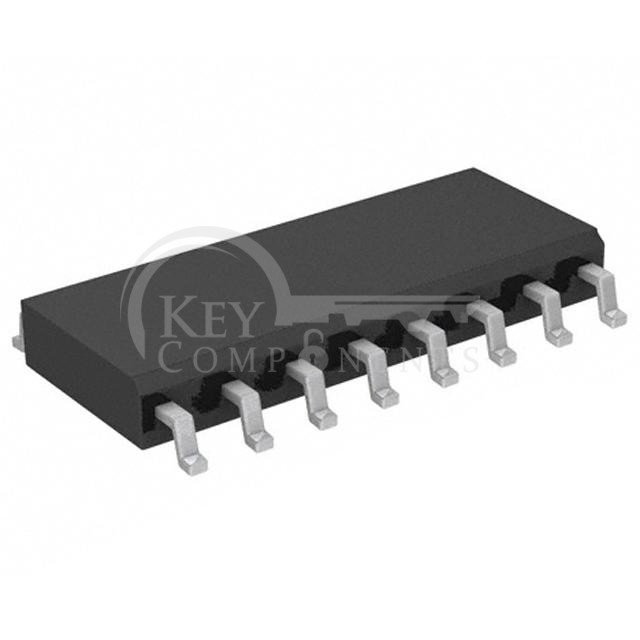

HCPL-090J-000E

HCPL-090J-000E

Manufacturer Part HCPL-090J-000E
Manufacturer Broadcom Limited
Description DGTL ISO 2500VRMS 4CH GP 16SOIC
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:GMR (Giant Magnetoresistive)
Type:General Purpose
Isolated Power:No
Number of Channels:4
Inputs - Side 1/Side 2:4/0
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):15kV/µs
Data Rate:110MBd
Propagation Delay tpLH / tpHL (Max):15ns, 15ns
Pulse Width Distortion (Max):3ns
Rise / Fall Time (Typ):1ns, 1ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SOIC
