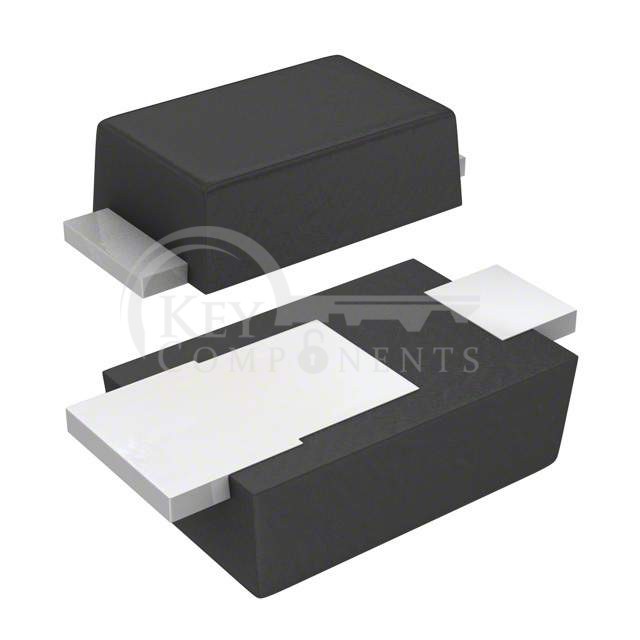

AL5809-120P1-7

AL5809-120P1-7

Manufacturer Part AL5809-120P1-7
Manufacturer Diodes Incorporated
Description IC LED DRVR LIN PWM 120MA PDI123
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Linear
Topology:-
Internal Switch(s):Yes
Number of Outputs:1
Voltage - Supply (Min):2.5V
Voltage - Supply (Max):60V
Voltage - Output:60V
Current - Output / Channel:120mA
Frequency:-
Dimming:PWM
Applications:Signage
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:POWERDI®123
Supplier Device Package:PowerDI™ 123
