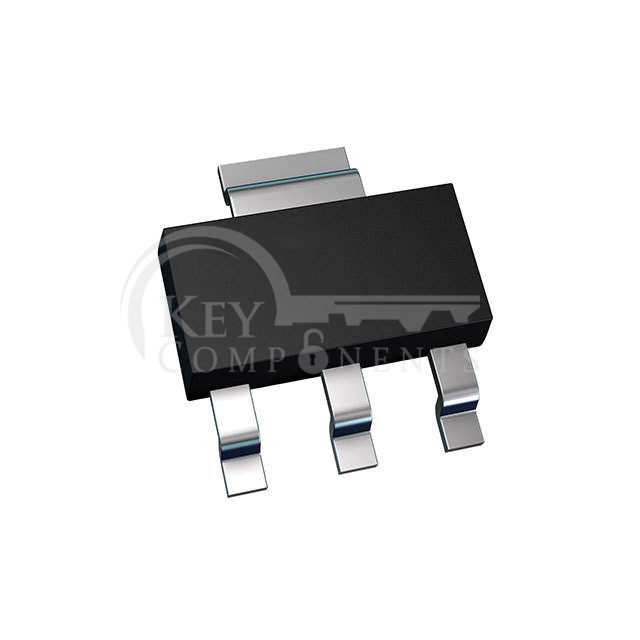

FZT1048ATA

FZT1048ATA

Manufacturer Part FZT1048ATA
Manufacturer Diodes Incorporated
Description TRANS NPN 17.5V 5A SOT223-3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):17.5 V
Vce Saturation (Max) @ Ib, Ic:350mV @ 25mA, 5A
Current - Collector Cutoff (Max):10nA
DC Current Gain (hFE) (Min) @ Ic, Vce:300 @ 1A, 2V
Power - Max:2.5 W
Frequency - Transition:150MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223-3
