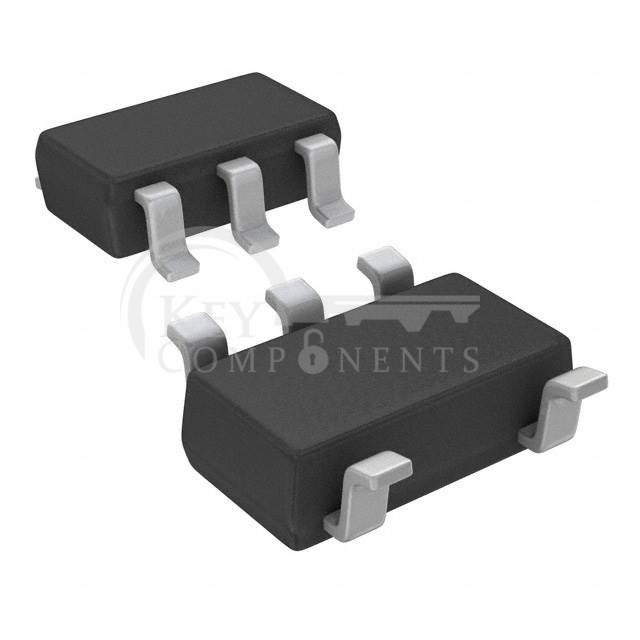

FAN2504S28X

FAN2504S28X

Manufacturer Part FAN2504S28X
Manufacturer Fairchild Semiconductor
Description IC REG LINEAR 2.8V 200MA SOT23-5
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):6.5V
Voltage - Output (Min/Fixed):2.8V
Voltage - Output (Max):-
Voltage Dropout (Max):0.2V @ 200mA
Current - Output:200mA
Current - Quiescent (Iq):75 µA
Current - Supply (Max):-
PSRR:43dB (120Hz)
Control Features:Enable
Protection Features:Over Temperature
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-23-5
