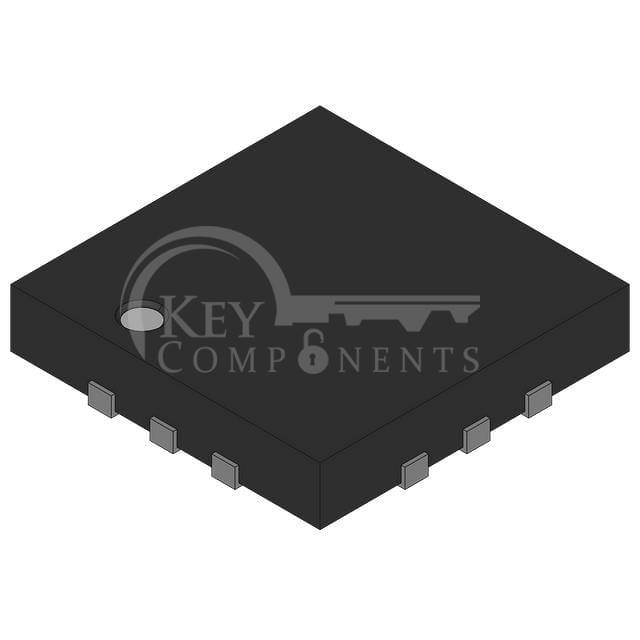

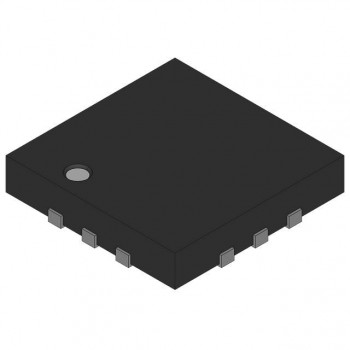

FAN5608HMPX
| Manufacturer Part | FAN5608HMPX |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC LED DRVR RGLTR PWM 20MA 12MLP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | DC DC Regulator |
| Topology: | Step-Up (Boost) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 2 |
| Voltage - Supply (Min): | 2.7V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | 18V |
| Current - Output / Channel: | 20mA |
| Frequency: | 500kHz |
| Dimming: | PWM |
| Applications: | Backlight |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 12-WQFN Exposed Pad |
| Supplier Device Package: | 12-MLP (4x4) |
