FGA6065ADF

FGA6065ADF

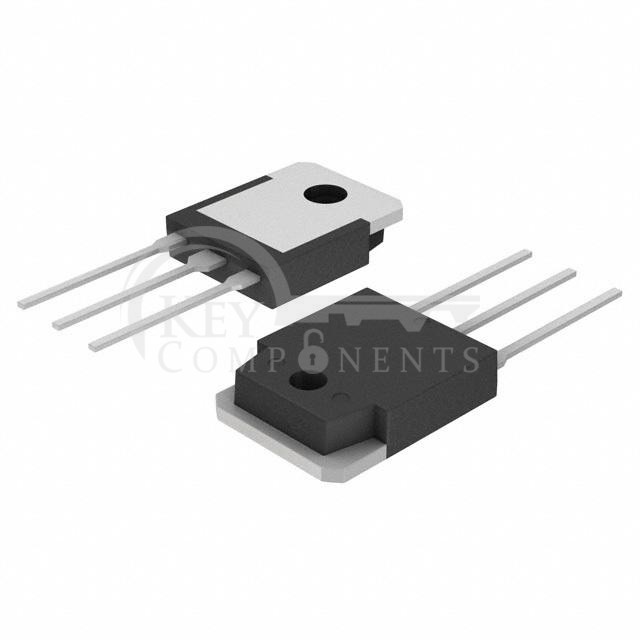

Manufacturer Part FGA6065ADF
Manufacturer Fairchild Semiconductor
Description INSULATED GATE BIPOLAR TRANSISTO
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):120 A
Current - Collector Pulsed (Icm):180 A
Vce(on) (Max) @ Vge, Ic:2.3V @ 15V, 60A
Power - Max:306 W
Switching Energy:2.46mJ (on), 520µJ (off)
Input Type:Standard
Gate Charge:84 nC
Td (on/off) @ 25°C:25.6ns/71ns
Test Condition:400V, 60A, 6Ohm, 15V
Reverse Recovery Time (trr):110 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3PN
