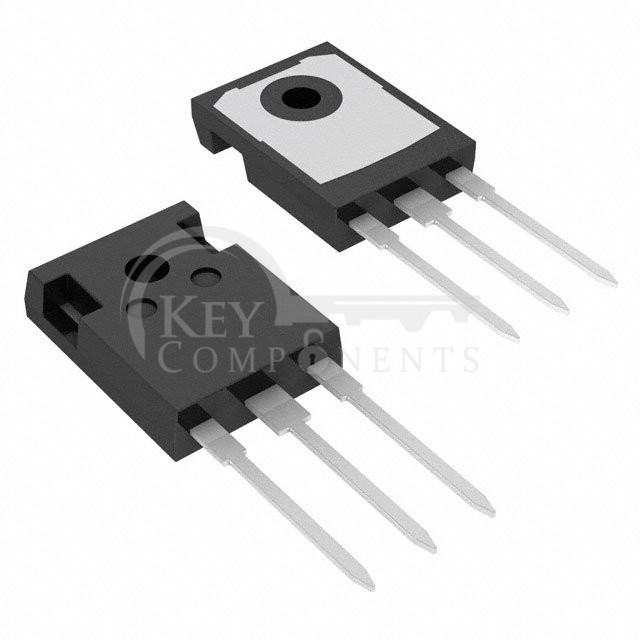

FGH30N120FTDTU

Manufacturer Part	FGH30N120FTDTU
Manufacturer	Fairchild Semiconductor
Description	N-CHANNEL IGBT
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	60 A
Current - Collector Pulsed (Icm):	90 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 30A
Power - Max:	339 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	208 nC
Td (on/off) @ 25°C:	-
Test Condition:	-
Reverse Recovery Time (trr):	730 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247
