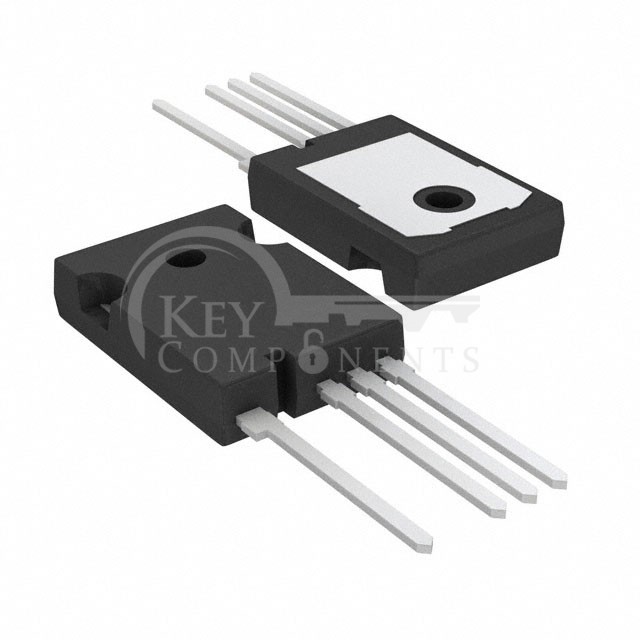

FGH40T120SMDL4

Manufacturer Part	FGH40T120SMDL4
Manufacturer	Fairchild Semiconductor
Description	INSULATED GATE BIPOLAR TRANSISTO
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	160 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 40A
Power - Max:	555 W
Switching Energy:	2.24mJ (on), 1.02mJ (off)
Input Type:	Standard
Gate Charge:	370 nC
Td (on/off) @ 25°C:	44ns/464ns
Test Condition:	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):	65 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-4
Supplier Device Package:	TO-247
