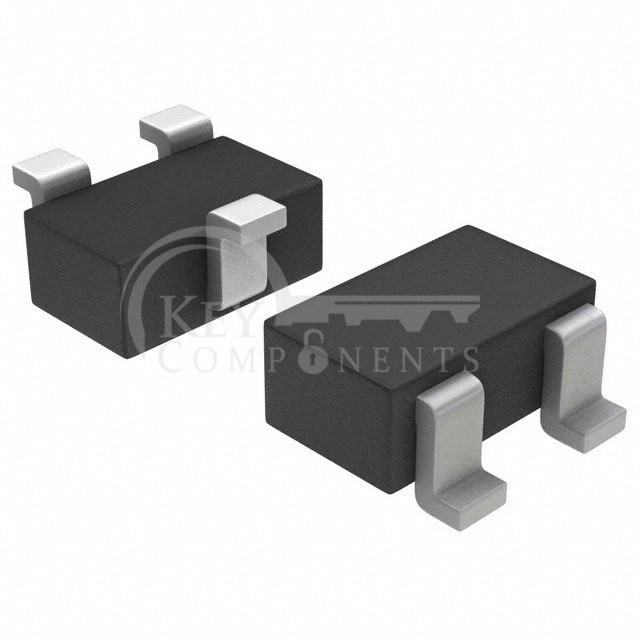

FJX3001RTF

FJX3001RTF

Manufacturer Part FJX3001RTF
Manufacturer Fairchild Semiconductor
Description SMALL SIGNAL BIPOLAR TRANSISTOR
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Transistor Type:NPN - Pre-Biased
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Resistor - Base (R1):4.7 kOhms
Resistor - Emitter Base (R2):4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:20 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic:300mV @ 500µA, 10mA
Current - Collector Cutoff (Max):100nA (ICBO)
Frequency - Transition:250 MHz
Power - Max:200 mW
Mounting Type:Surface Mount
Package / Case:SC-70, SOT-323
Supplier Device Package:SC-70-3 (SOT323)
