SGR6N60UFTF

Manufacturer Part	SGR6N60UFTF
Manufacturer	Fairchild Semiconductor
Description	N-CHANNEL IGBT
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	6 A
Current - Collector Pulsed (Icm):	25 A
Vce(on) (Max) @ Vge, Ic:	2.6V @ 15V, 3A
Power - Max:	30 W
Switching Energy:	57µJ (on), 25µJ (off)
Input Type:	Standard
Gate Charge:	15 nC
Td (on/off) @ 25°C:	15ns/60ns
Test Condition:	300V, 3A, 80Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

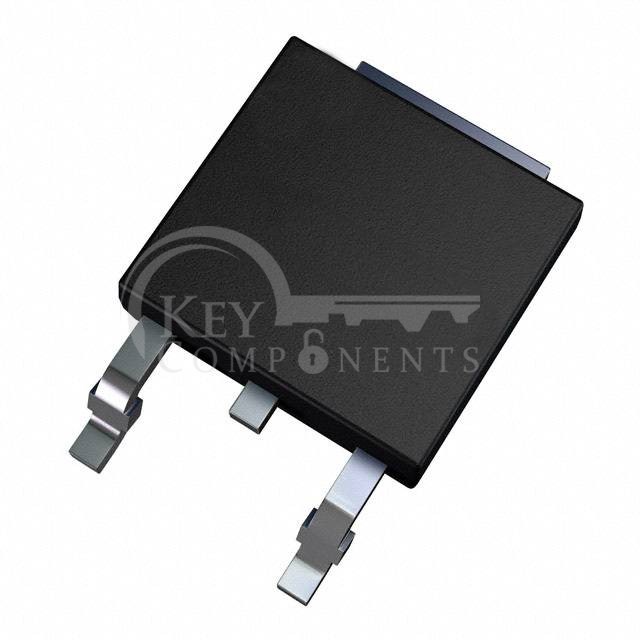

Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	TO-252, (D-Pak)
