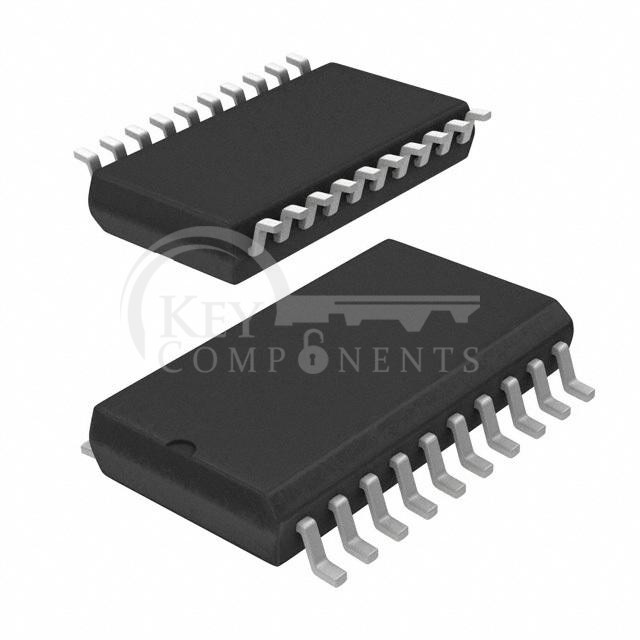

BTS740S2XUMA1

BTS740S2XUMA1

Manufacturer Part BTS740S2XUMA1
Manufacturer Infineon Technologies
Description IC PWR SWITCH N-CHAN 1:1 DSO-20
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Type:General Purpose
Number of Outputs:2
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:5V ~ 34V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):4.9A
Rds On (Typ):27mOhm
Input Type:Non-Inverting
Features:Status Flag
Fault Protection:Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-DSO-20
Package / Case:20-SOIC (0.295", 7.50mm Width)
