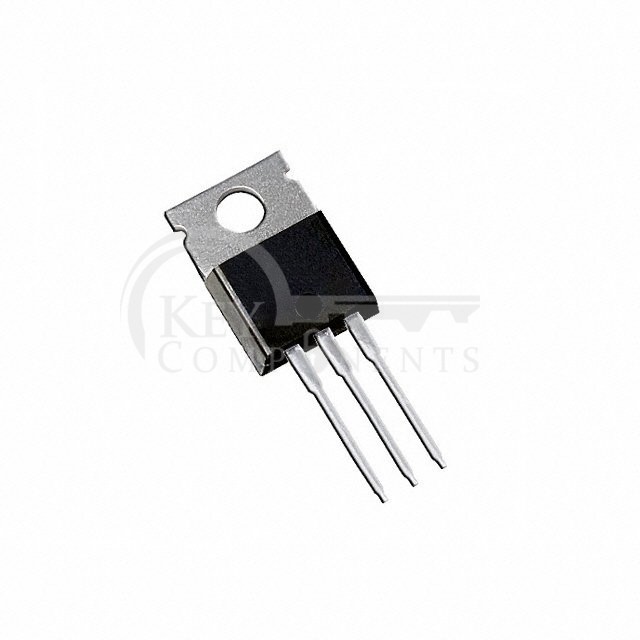

IRGB4064DPBF

IRGB4064DPBF

Manufacturer Part IRGB4064DPBF
Manufacturer International Rectifier
Description IGBT WITH RECOVERY DIODE
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
IGBT Type:Trench
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):20 A
Current - Collector Pulsed (Icm):40 A
Vce(on) (Max) @ Vge, Ic:1.91V @ 15V, 10A
Power - Max:101 W
Switching Energy:29µJ (on), 200µJ (off)
Input Type:Standard
Gate Charge:32 nC
Td (on/off) @ 25°C:27ns/79ns
Test Condition:400V, 10A, 22Ohm, 15V
Reverse Recovery Time (trr):62 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220AB
