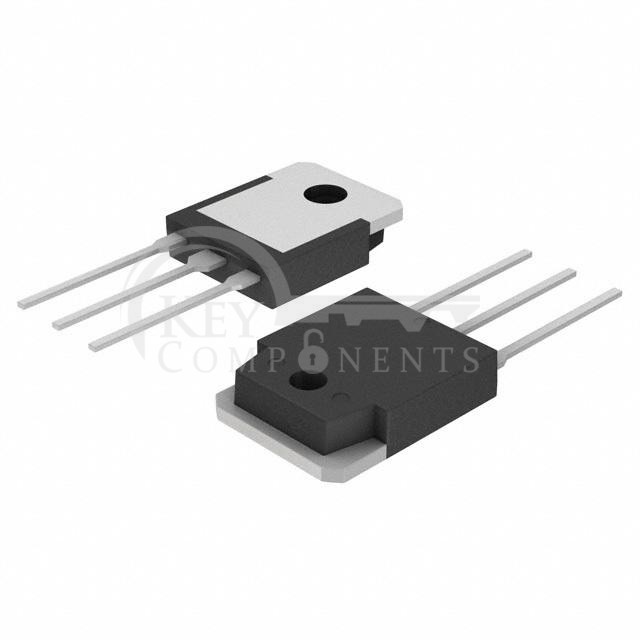

IXTQ30N60P

Manufacturer Part	IXTQ30N60P
Manufacturer	IXYS
Description	MOSFET N-CH 600V 30A TO3P
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	240mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	82 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	5050 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	540W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-3P
Package / Case:	TO-3P-3, SC-65-3
