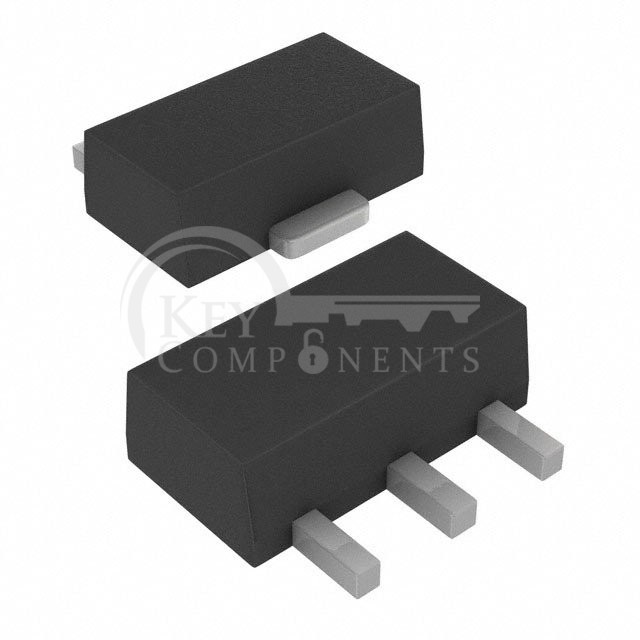

TP2520N8-G

Manufacturer Part	TP2520N8-G
Manufacturer	Microchip Technology
Description	MOSFET P-CH 200V 260MA TO243AA
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	260mA (Tj)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	12Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id:	2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	125 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1.6W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-243AA (SOT-89)
Package / Case:	TO-243AA
