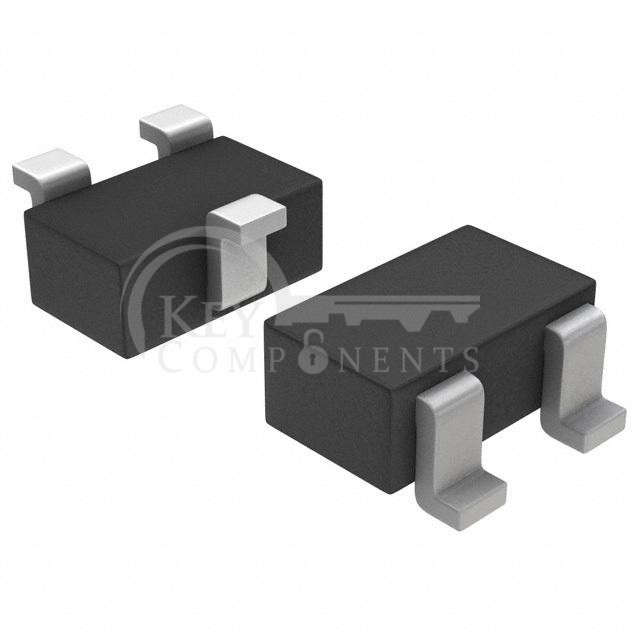

1SV315-TL-E
| Manufacturer Part | 1SV315-TL-E |
|---|---|
| Manufacturer | onsemi |
| Description | RF DIODE PIN 50V 100MW 3MCP |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Diode Type: | PIN - 1 Pair Series Connection |
| Voltage - Peak Reverse (Max): | 50V |
| Current - Max: | 50 mA |
| Capacitance @ Vr, F: | 0.23pF @ 50V, 1MHz |
| Resistance @ If, F: | 9Ohm @ 10mA, 100MHz |
| Power Dissipation (Max): | 100 mW |
| Operating Temperature: | 125°C (TJ) |
| Package / Case: | SC-70, SOT-323 |
| Supplier Device Package: | 3-MCP |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
