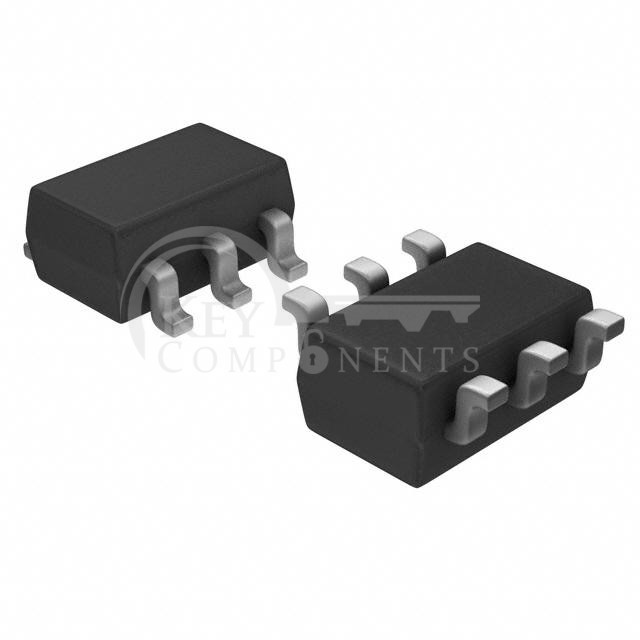

FDC6321C

FDC6321C

Manufacturer Part FDC6321C
Manufacturer onsemi
Description MOSFET N/P-CH 25V SSOT-6
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N and P-Channel
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):25V
Current - Continuous Drain (Id) @ 25°C:680mA, 460mA
Rds On (Max) @ Id, Vgs:450mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:2.3nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:50pF @ 10V
Power - Max:700mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-23-6 Thin, TSOT-23-6
Supplier Device Package:SuperSOT™-6
