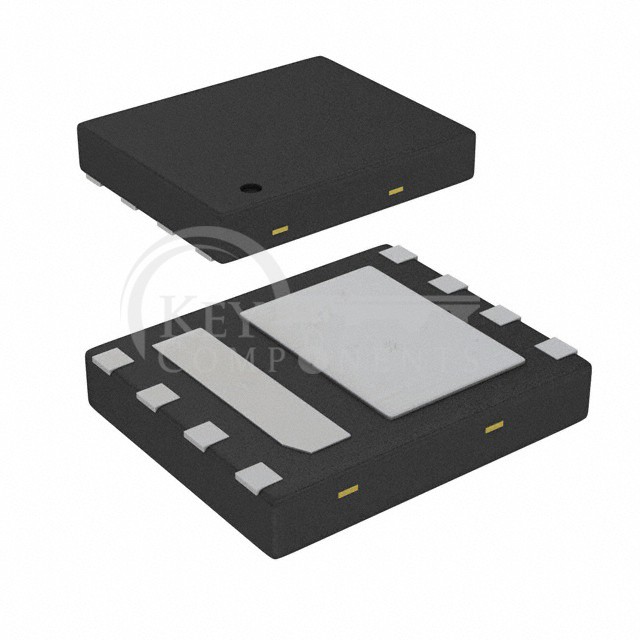

FDMS9600S

FDMS9600S

Manufacturer Part FDMS9600S
Manufacturer onsemi
Description MOSFET 2N-CH 30V 12A/16A POWER56
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:2 N-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):30V
Current - Continuous Drain (Id) @ 25°C:12A, 16A
Rds On (Max) @ Id, Vgs:8.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1705pF @ 15V
Power - Max:1W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerWDFN
Supplier Device Package:8-MLP (5x6), Power56
