FDS9934C

Manufacturer Part	FDS9934C
Manufacturer	onsemi
Description	MOSFET N/P-CH 20V 6.5A/5A 8SOIC
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	6.5A, 5A
Rds On (Max) @ Id, Vgs:	30mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	650pF @ 10V
Power - Max:	900mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

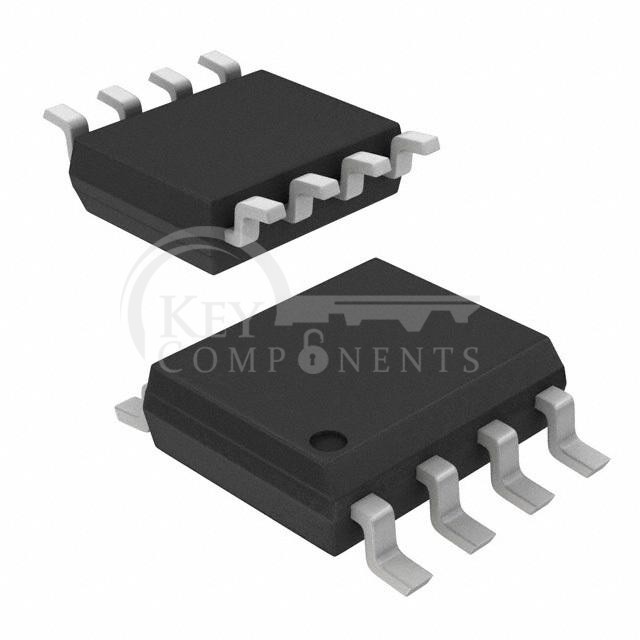

Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
