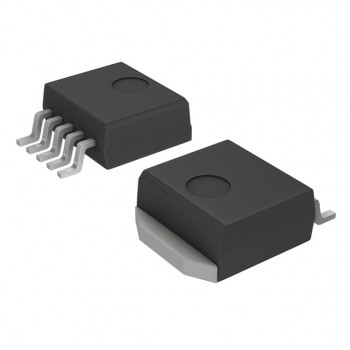

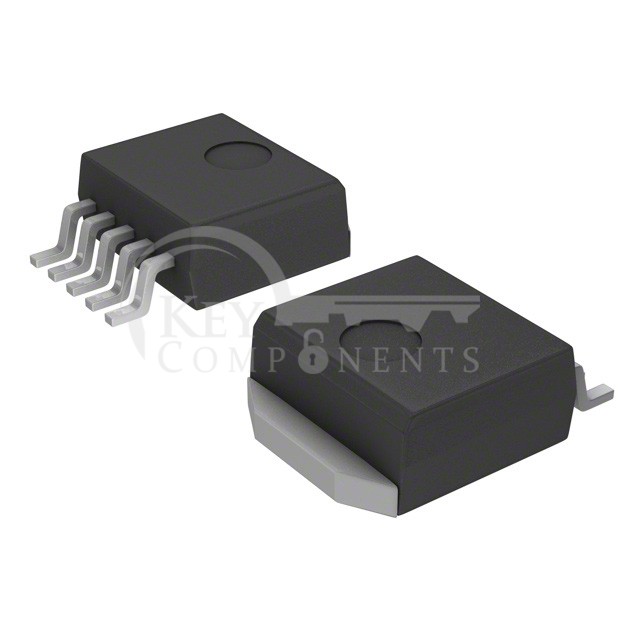

NCP59302DSADJR4G
| Manufacturer Part | NCP59302DSADJR4G |
|---|---|
| Manufacturer | onsemi |
| Description | IC REG LINEAR POS ADJ 3A D2PAK-5 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Positive |
| Output Type: | Adjustable |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 13.5V |
| Voltage - Output (Min/Fixed): | 1.24V |
| Voltage - Output (Max): | 13V |
| Voltage Dropout (Max): | 0.5V @ 3A |
| Current - Output: | 3A |
| Current - Quiescent (Iq): | - |
| Current - Supply (Max): | - |
| PSRR: | - |
| Control Features: | Enable, Error Flag |
| Protection Features: | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package: | D2PAK-5 |
