NDS9942

Manufacturer Part	NDS9942
Manufacturer	onsemi
Description	MOSFET N+P 20V 2.5A 8-SOIC
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	3A, 2.5A
Rds On (Max) @ Id, Vgs:	125mOhm @ 1A, 10V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	27nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	525pF @ 10V
Power - Max:	900mW
Operating Temperature:	-
Mounting Type:	Surface Mount

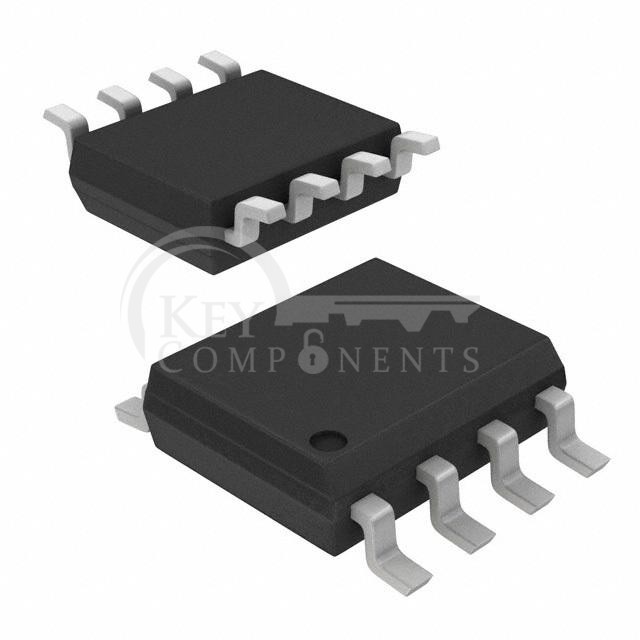

Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
