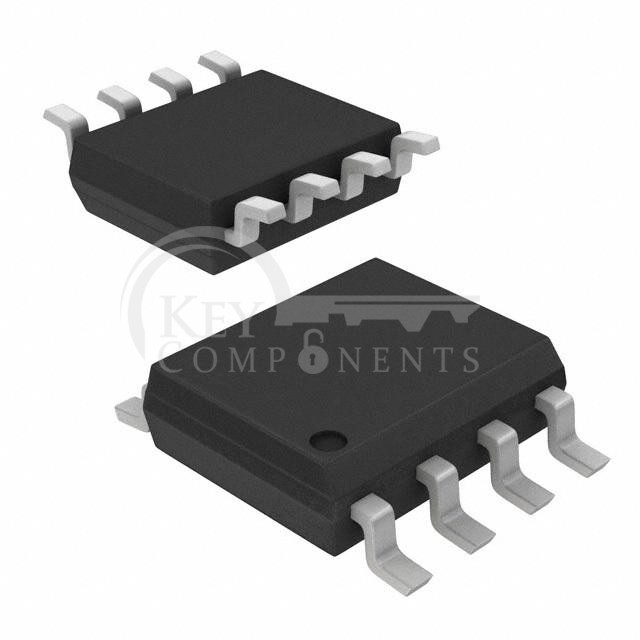

NTMD2C02R2

NTMD2C02R2

Manufacturer Part NTMD2C02R2
Manufacturer onsemi
Description MOSFET N/P-CH 20V 8SOIC
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:N and P-Channel
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:5.2A, 3.4A
Rds On (Max) @ Id, Vgs:43mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:20nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1100pF @ 10V
Power - Max:2W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
