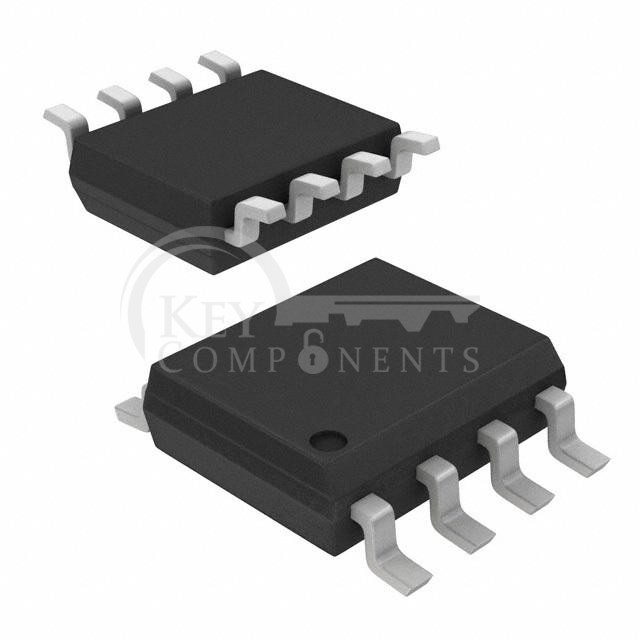

NTMD2C02R2G

Manufacturer Part	NTMD2C02R2G
Manufacturer	onsemi
Description	MOSFET N/P-CH 20V 8SOIC
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	5.2A, 3.4A
Rds On (Max) @ Id, Vgs:	43mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	20nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	1100pF @ 10V
Power - Max:	2W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
