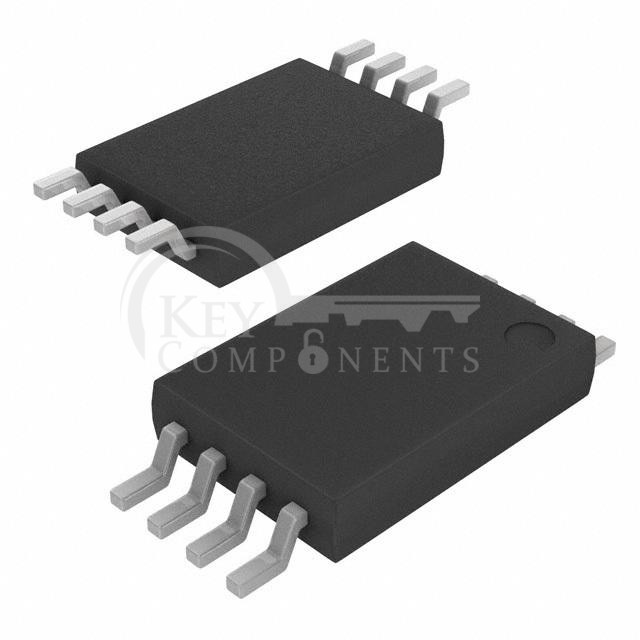

NTQD6866R2

NTQD6866R2

Manufacturer Part NTQD6866R2
Manufacturer onsemi
Description MOSFET 2N-CH 20V 4.7A 8TSSOP
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:2 N-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:4.7A
Rds On (Max) @ Id, Vgs:32mOhm @ 6.9A, 4.5V
Vgs(th) (Max) @ Id:1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:22nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1400pF @ 16V
Power - Max:940mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:8-TSSOP
