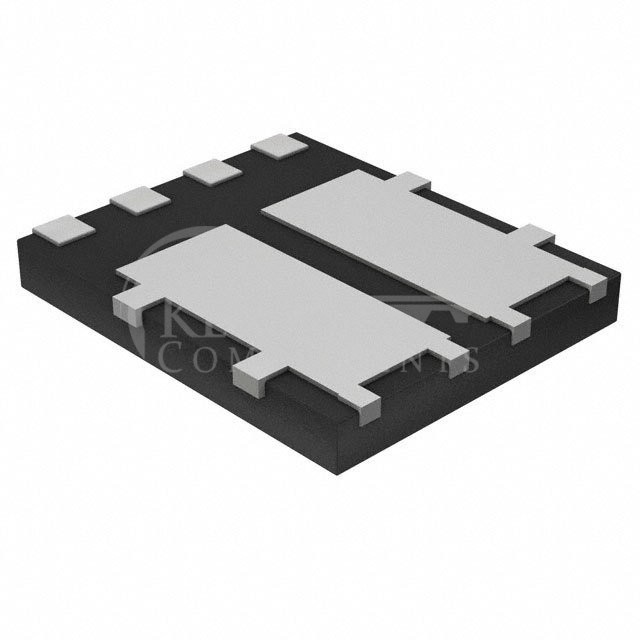

NVMFD5875NLT1G

NVMFD5875NLT1G

Manufacturer Part NVMFD5875NLT1G
Manufacturer onsemi
Description MOSFET 2N-CH 60V 7A SO8FL
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:2 N-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):60V
Current - Continuous Drain (Id) @ 25°C:7A
Rds On (Max) @ Id, Vgs:33mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:540pF @ 25V
Power - Max:3.2W
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerTDFN
Supplier Device Package:8-DFN (5x6) Dual Flag (SO8FL-Dual)
