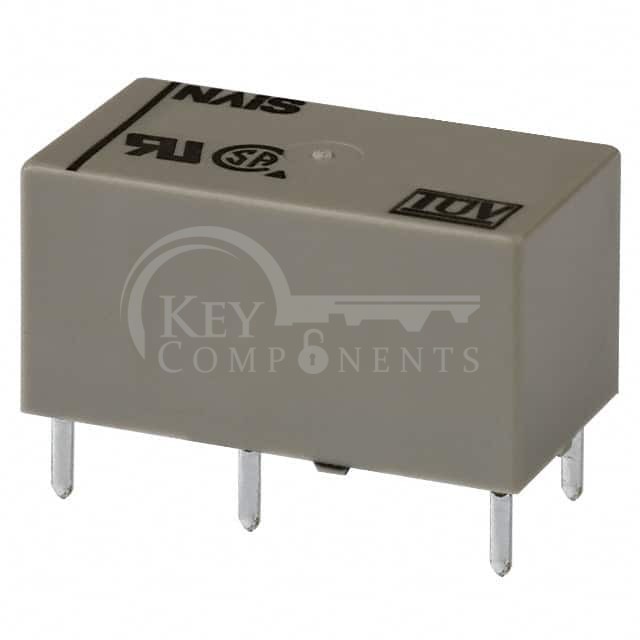

DSP1-L2-DC12V-F

DSP1-L2-DC12V-F

Manufacturer Part DSP1-L2-DC12V-F
Manufacturer Panasonic Electric Works
Description RELAY GEN PURPOSE DPST 5A 12V
Category Relays
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:25 mA
Coil Type:Latching, Dual Coil
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:9.6 VDC
Must Release Voltage:-
Operate Time:10 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 65°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
