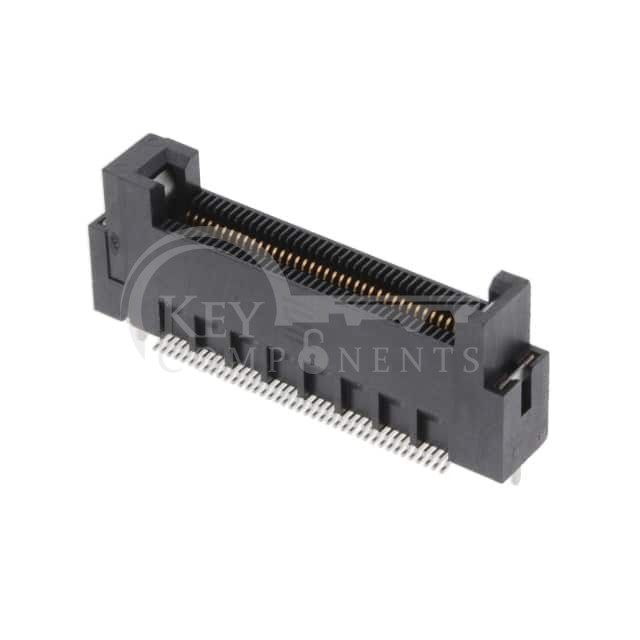

MEC5-040-01-L-DV-W1-K-TR
| Manufacturer Part | MEC5-040-01-L-DV-W1-K-TR |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN MINI EDGE CARD 80POS SMD |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Card Type: | Non Specified - Dual Edge |
| Gender: | Female |
| Number of Positions/Bay/Row: | 40 |
| Number of Positions: | 80 |
| Card Thickness: | 0.062" (1.57mm) |
| Number of Rows: | 2 |
| Pitch: | 0.020" (0.50mm) |
| Read Out: | Dual |
| Features: | Board Guide, Pick and Place, Solder Retention |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Contact Material: | Copper Alloy |
| Contact Finish: | Gold |
| Contact Finish Thickness: | 10.0µin (0.25µm) |
| Contact Type: | - |
| Color: | Black |
| Flange Feature: | - |
| Operating Temperature: | -55°C ~ 125°C |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
