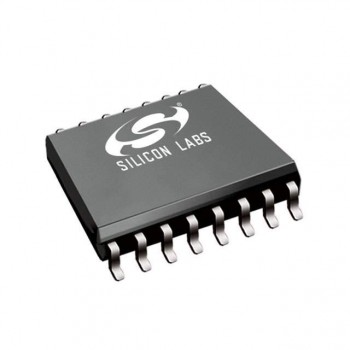

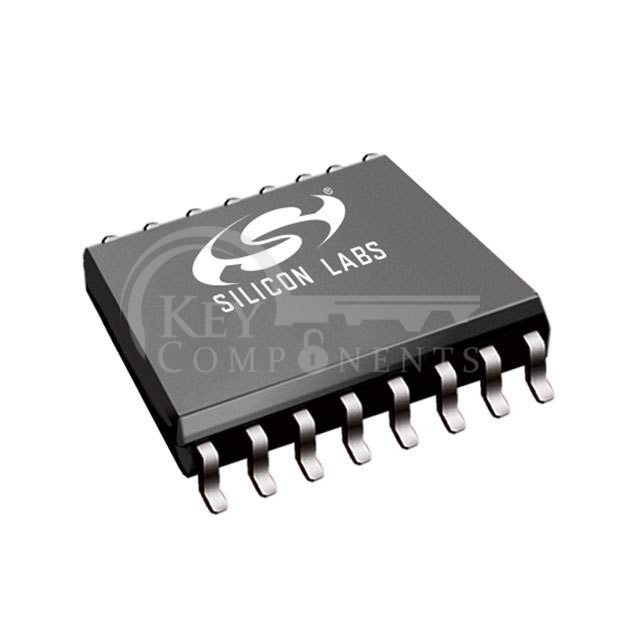

SI8661ED-B-IS

SI8661ED-B-IS

Manufacturer Part SI8661ED-B-IS
Manufacturer Skyworks Solutions Inc.
Description DGTL ISO 5000VRMS 6CH GP 16SOIC
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:6
Inputs - Side 1/Side 2:5/1
Channel Type:Unidirectional
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):35kV/µs
Data Rate:150Mbps
Propagation Delay tpLH / tpHL (Max):13ns, 13ns
Pulse Width Distortion (Max):4.5ns
Rise / Fall Time (Typ):2.5ns, 2.5ns
Voltage - Supply:2.5V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
