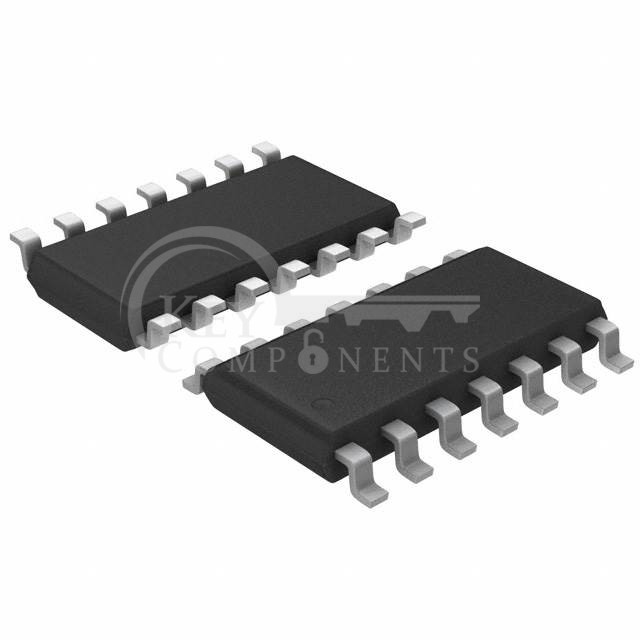

HCF4093M013TR
| Manufacturer Part | HCF4093M013TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC GATE NAND SCHMIT 4CH 2IN 14SO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | NAND Gate |
| Number of Circuits: | 4 |
| Number of Inputs: | 2 |
| Features: | Schmitt Trigger |
| Voltage - Supply: | 3V ~ 20V |
| Current - Quiescent (Max): | 20 µA |
| Current - Output High, Low: | 6.8mA, 6.8mA |
| Logic Level - Low: | 0.9V ~ 4V |
| Logic Level - High: | 3.6V ~ 10.8V |
| Max Propagation Delay @ V, Max CL: | 130ns @ 15V, 50pF |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 14-SO |
| Package / Case: | 14-SOIC (0.154", 3.90mm Width) |
