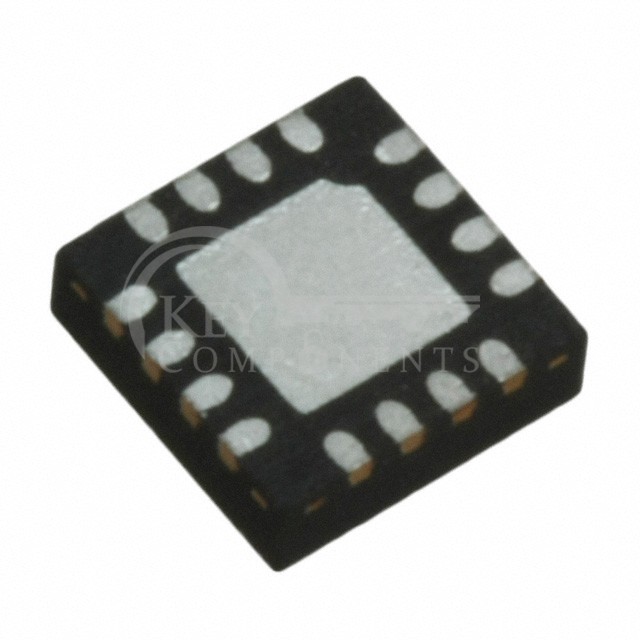

STLD20CP1PQR
| Manufacturer Part | STLD20CP1PQR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC LED DRV RGLTR PWM 300MA 16QFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | DC DC Regulator |
| Topology: | Step-Up (Boost), Switched Capacitor (Charge Pump) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 2 |
| Voltage - Supply (Min): | 2.8V |
| Voltage - Supply (Max): | 6V |
| Voltage - Output: | 17V |
| Current - Output / Channel: | 300mA (Flash) |
| Frequency: | 1.3MHz |
| Dimming: | PWM, Single-Wire |
| Applications: | Backlight, Camera Flash |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-VFQFN Exposed Pad |
| Supplier Device Package: | 16-QFN (3x3) |
