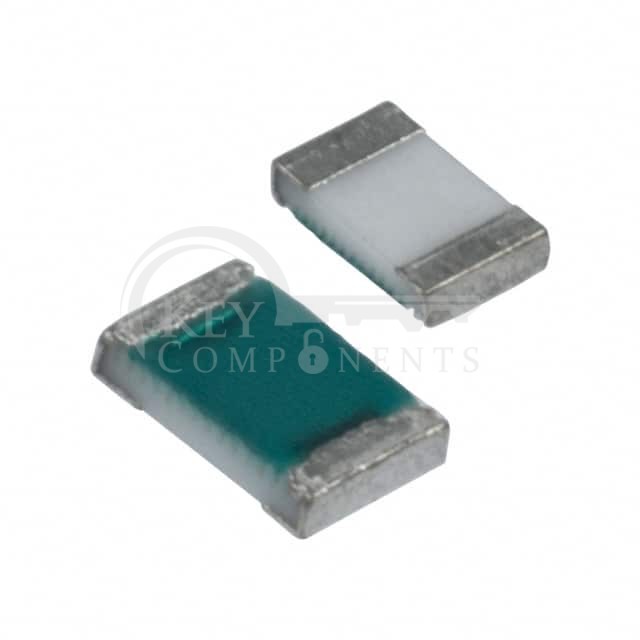

RL0816S-R22-F

RL0816S-R22-F

Manufacturer Part RL0816S-R22-F
Manufacturer Susumu
Description RES 0.22 OHM 1% 1/5W 0603
Category Resistors
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Resistance:220 mOhms
Tolerance:±1%
Power (Watts):0.2W, 1/5W
Composition:Thin Film
Features:Current Sense
Temperature Coefficient:0/ +200ppm/°C
Operating Temperature:-55°C ~ 125°C
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Ratings:-
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.022" (0.55mm)
Number of Terminations:2
Failure Rate:-
