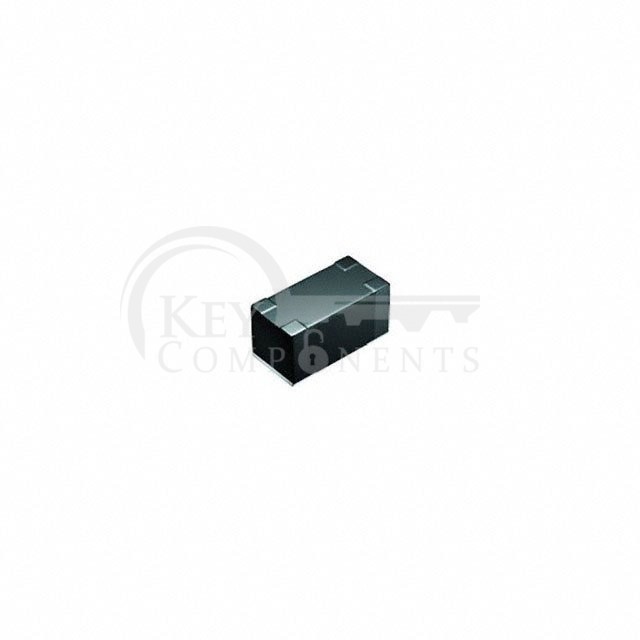

BRC2016T101K

BRC2016T101K

Manufacturer Part BRC2016T101K
Manufacturer Taiyo Yuden
Description FIXED IND 100UH 170MA 4.42OHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:100 µH
Tolerance:±10%
Current Rating (Amps):170 mA
Current - Saturation (Isat):140mA
Shielding:Unshielded
DC Resistance (DCR):4.42Ohm Max
Q @ Freq:-
Frequency - Self Resonant:7MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:0806 (2016 Metric)
Supplier Device Package:0806 (2016 Metric)
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.071" (1.80mm)
