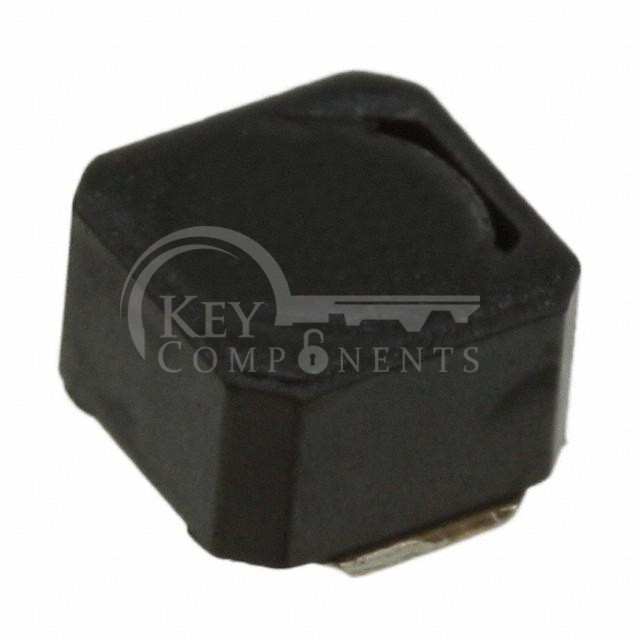

VLCF4028T-220MR72-2

VLCF4028T-220MR72-2

Manufacturer Part VLCF4028T-220MR72-2
Manufacturer TDK Corporation
Description FIXED IND 22UH 720MA 240MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):720 mA
Current - Saturation (Isat):720mA
Shielding:Shielded
DC Resistance (DCR):240mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):0.110" (2.80mm)
