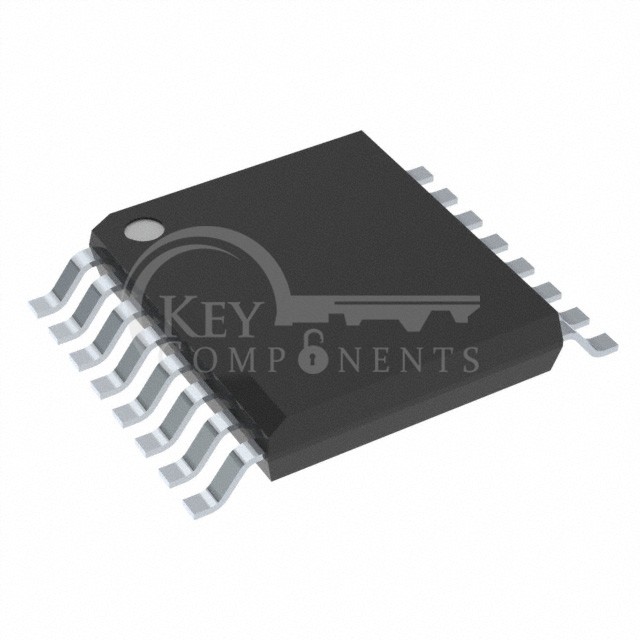

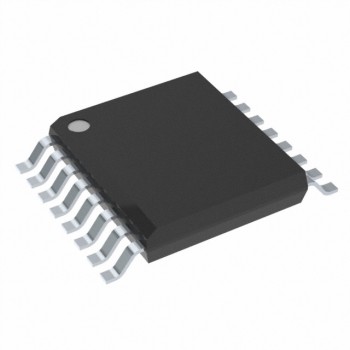

ISO1212DBQR

ISO1212DBQR

Manufacturer Part ISO1212DBQR
Manufacturer Texas Instruments
Description DGTL ISO 2500VRMS 2CH GP 16SSOP
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:2
Inputs - Side 1/Side 2:0/2
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):25kV/µs
Data Rate:4Mbps
Propagation Delay tpLH / tpHL (Max):140ns, 15ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):3ns, 3ns
Voltage - Supply:2.25V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:16-SSOP
