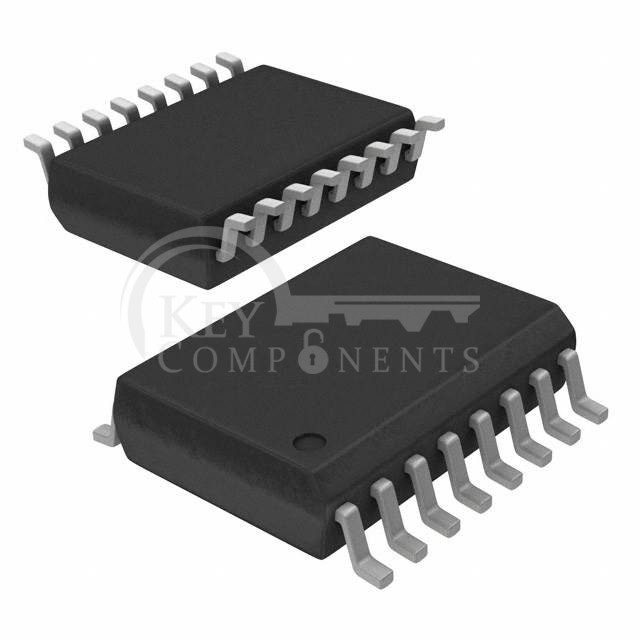

ISO3086DW

ISO3086DW

Manufacturer Part ISO3086DW
Manufacturer Texas Instruments
Description ISO RS485/422 20MBPS 2.5KVRMS
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Capacitive Coupling
Type:RS422, RS485
Isolated Power:No
Number of Channels:3
Inputs - Side 1/Side 2:2/1
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):25kV/µs
Data Rate:20Mbps
Propagation Delay tpLH / tpHL (Max):-
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):-
Voltage - Supply:3.15V ~ 5.5V, 4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
