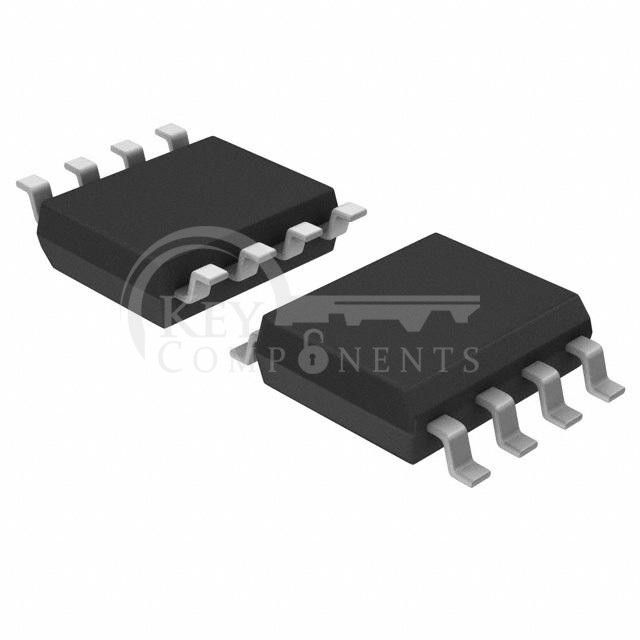

ISO7320FCQDRQ1

ISO7320FCQDRQ1

Manufacturer Part ISO7320FCQDRQ1
Manufacturer Texas Instruments
Description DGTL ISO 3000VRMS 2CH 8SOIC
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Channel Type:Unidirectional
Voltage - Isolation:3000Vrms
Common Mode Transient Immunity (Min):25kV/µs
Data Rate:25Mbps
Propagation Delay tpLH / tpHL (Max):57ns, 57ns
Pulse Width Distortion (Max):4ns
Rise / Fall Time (Typ):2.4ns, 2.1ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
