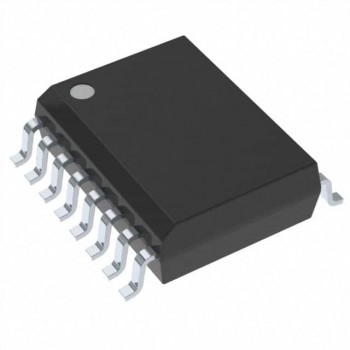

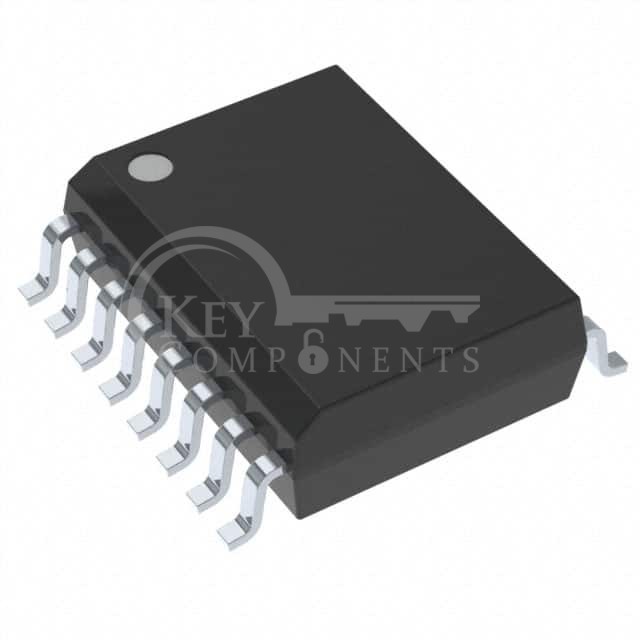

ISO7341CDWR
| Manufacturer Part | ISO7341CDWR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | DGTL ISO 3000VRMS 4CH GP 16SOIC |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Technology: | Capacitive Coupling |
| Type: | General Purpose |
| Isolated Power: | No |
| Number of Channels: | 4 |
| Inputs - Side 1/Side 2: | 3/1 |
| Channel Type: | Unidirectional |
| Voltage - Isolation: | 3000Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs |
| Data Rate: | 25Mbps |
| Propagation Delay tpLH / tpHL (Max): | 58ns, 58ns |
| Pulse Width Distortion (Max): | 4ns |
| Rise / Fall Time (Typ): | 2.1ns, 1.7ns |
| Voltage - Supply: | 3V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC |
