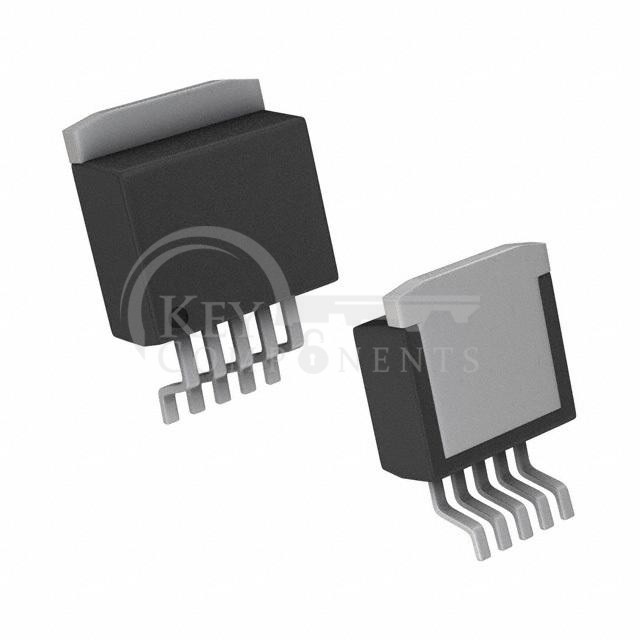

LP3855ESX-3.3

LP3855ESX-3.3

Manufacturer Part LP3855ESX-3.3
Manufacturer Texas Instruments
Description IC REG LINEAR 3.3V 1.5A DDPAK
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):7V
Voltage - Output (Min/Fixed):3.3V
Voltage - Output (Max):-
Voltage Dropout (Max):0.38V @ 1.5A
Current - Output:1.5A
Current - Quiescent (Iq):3 mA
Current - Supply (Max):10 mA
PSRR:73dB ~ 57dB (120Hz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package:DDPAK/TO-263-5
