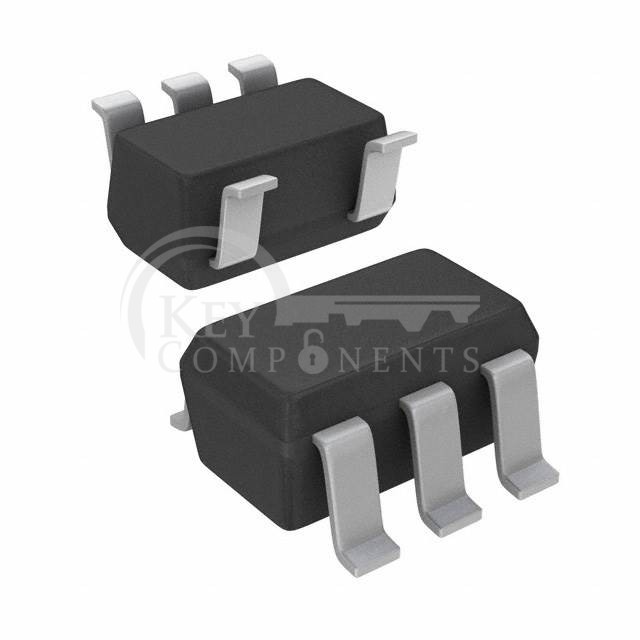

TPS76325DBVR
| Manufacturer Part | TPS76325DBVR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REG LINEAR 2.5V 150MA SOT23-5 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 10V |
| Voltage - Output (Min/Fixed): | 2.5V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | 0.6V @ 150mA |
| Current - Output: | 150mA |
| Current - Quiescent (Iq): | 100 µA |
| Current - Supply (Max): | 140 µA |
| PSRR: | 60dB (1kHz) |
| Control Features: | Enable |
| Protection Features: | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-74A, SOT-753 |
| Supplier Device Package: | SOT-23-5 |
