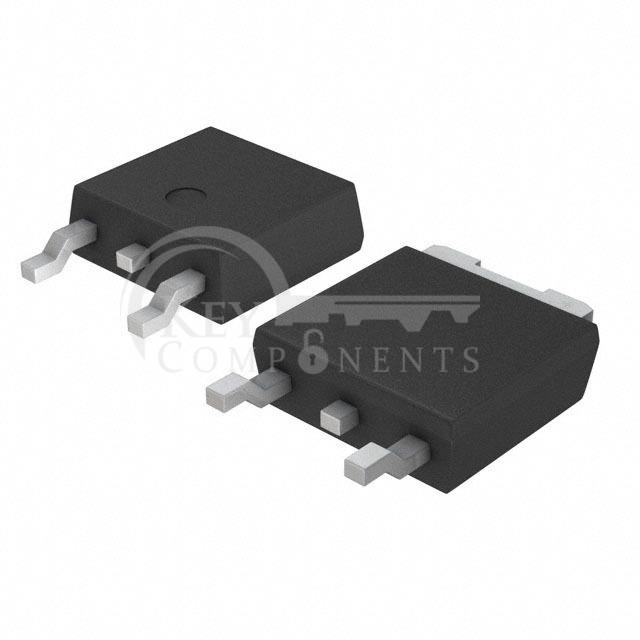

IRLR110TRPBF

Manufacturer Part	IRLR110TRPBF
Manufacturer	Vishay Siliconix
Description	MOSFET N-CH 100V 4.3A DPAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	4.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4V, 5V
Rds On (Max) @ Id, Vgs:	540mOhm @ 2.6A, 5V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6.1 nC @ 5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	250 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta), 25W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D-Pak
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
