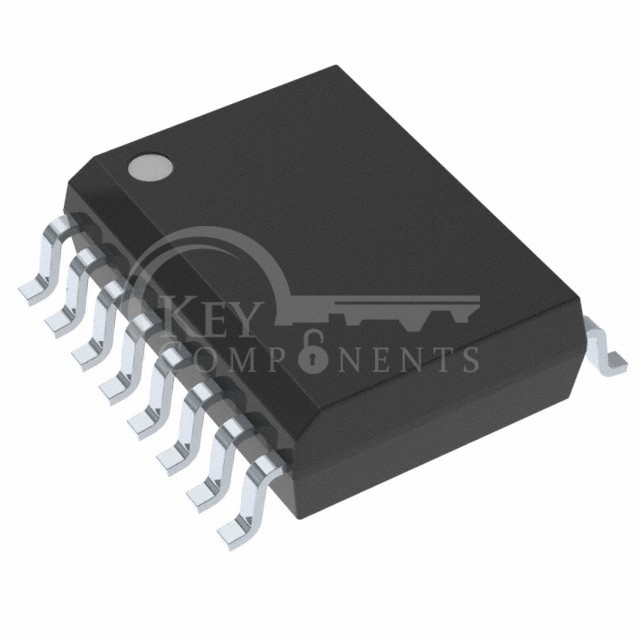

ADM2487EBRWZ

ADM2487EBRWZ

Manufacturer Part ADM2487EBRWZ
Manufacturer Analog Devices Inc.
Description DGT ISO 2.5KV RS422/RS485 16SOIC
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Magnetic Coupling
Type:RS422, RS485
Isolated Power:No
Number of Channels:3
Inputs - Side 1/Side 2:2/1
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):25kV/µs
Data Rate:500kbps
Propagation Delay tpLH / tpHL (Max):-
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):1.1µs, 1.1µs (Max)
Voltage - Supply:3.3V, 5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
