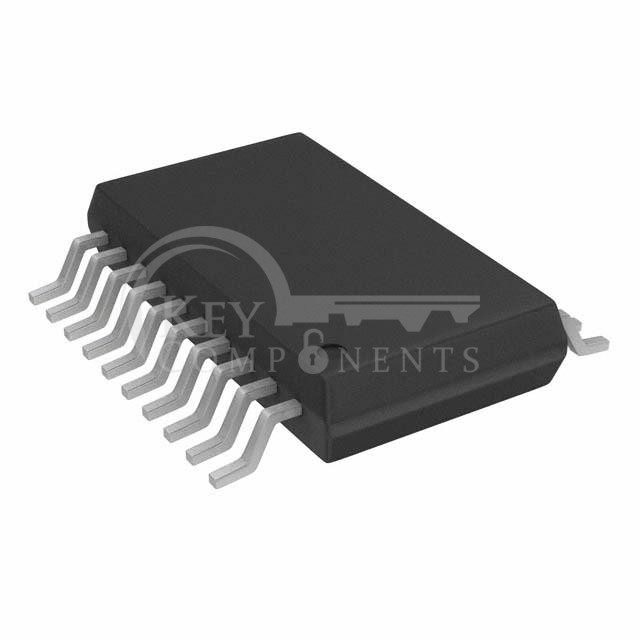

ADUM7640CRQZ

ADUM7640CRQZ

Manufacturer Part ADUM7640CRQZ
Manufacturer Analog Devices Inc.
Description DGTL ISO 1000VRMS 6CH GP 20QSOP
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:6
Inputs - Side 1/Side 2:6/0
Channel Type:Unidirectional
Voltage - Isolation:1000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Data Rate:25Mbps
Propagation Delay tpLH / tpHL (Max):50ns, 50ns
Pulse Width Distortion (Max):6ns
Rise / Fall Time (Typ):2ns, 2ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:20-SSOP (0.154", 3.90mm Width)
Supplier Device Package:20-QSOP
