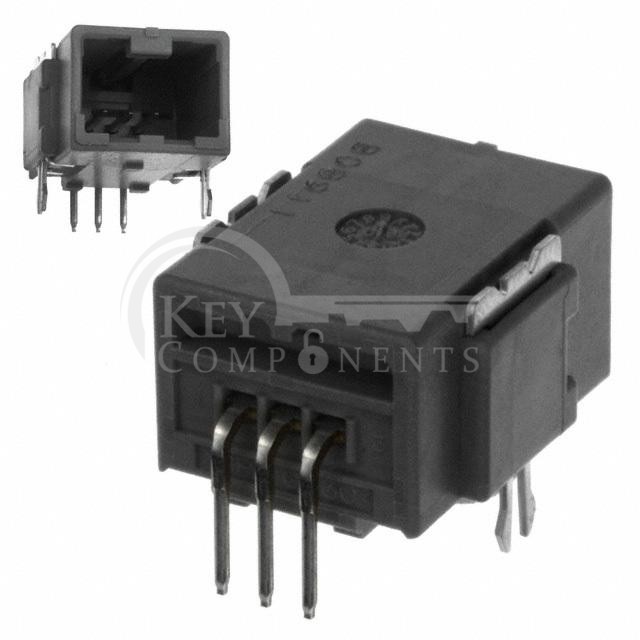

MX34003NF1

Type	Description
Product Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.087" (2.20mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	0.303" (7.70mm)
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.421" (10.70mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Syndiotactic Polystyrene (SPS), Glass Filled
Features:	Board Lock
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	3A
Voltage Rating:	-
