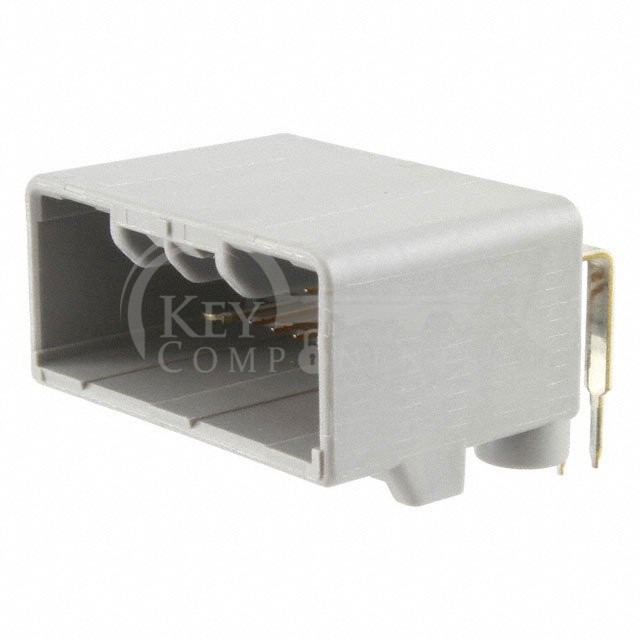

MX34017NFA

Type	Description
Product Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	-
Number of Positions:	17
Number of Rows:	2
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.650" (16.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Syndiotactic Polystyrene (SPS), Glass Filled
Features:	Mounting Flange
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	3A
Voltage Rating:	-

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
