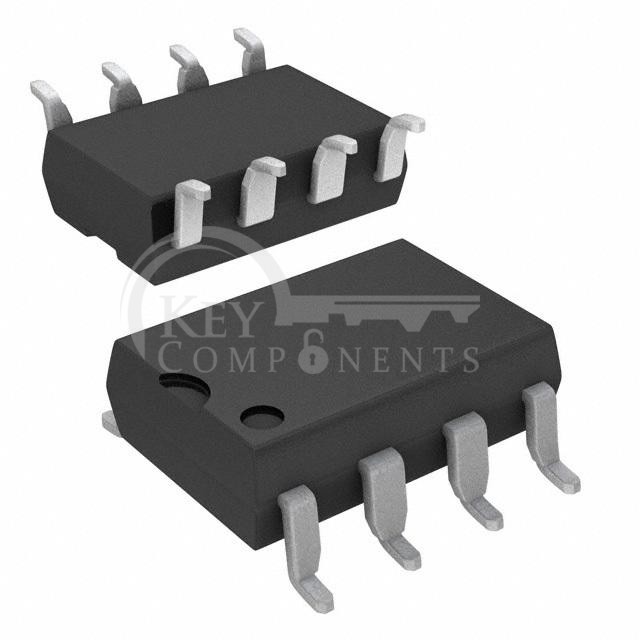

6N136S-TA1

6N136S-TA1

Manufacturer Part 6N136S-TA1
Manufacturer Lite-On Inc.
Description OPTOISO 5KV TRANS W/BASE 8SMD
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):19% @ 16mA
Current Transfer Ratio (Max):50% @ 16mA
Turn On / Turn Off Time (Typ):100ns, 400ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
