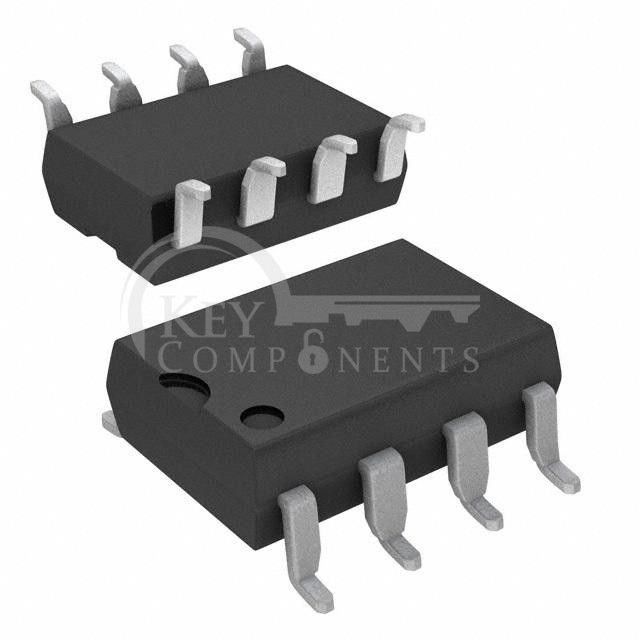

6N136S
| Manufacturer Part | 6N136S |
|---|---|
| Manufacturer | Lite-On Inc. |
| Description | OPTOISO 5KV TRANS W/BASE 8SMD |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Current Transfer Ratio (Min): | 19% @ 16mA |
| Current Transfer Ratio (Max): | 50% @ 16mA |
| Turn On / Turn Off Time (Typ): | 100ns, 400ns |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Transistor with Base |
| Voltage - Output (Max): | 20V |
| Current - Output / Channel: | 8mA |
| Voltage - Forward (Vf) (Typ): | 1.4V |
| Current - DC Forward (If) (Max): | 25 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SMD, Gull Wing |
| Supplier Device Package: | 8-SMD |
