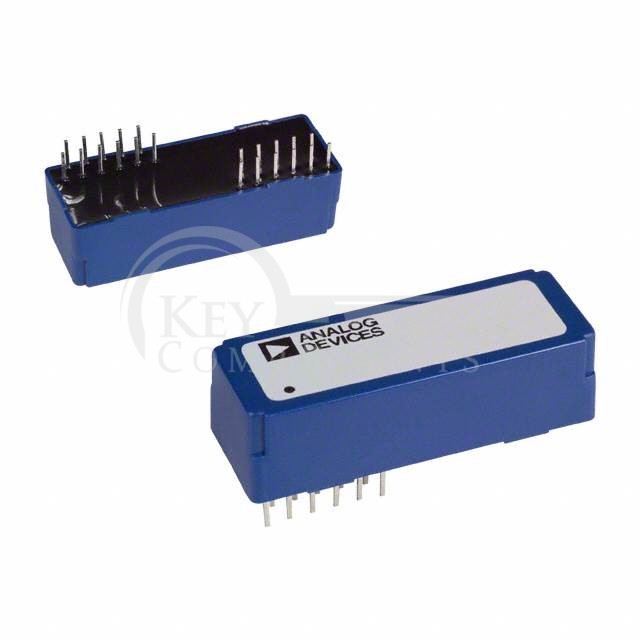

AD260BND-1
| Manufacturer Part | AD260BND-1 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | DGTL ISO 3.5KV GEN PURP 22DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Technology: | Magnetic Coupling |
| Type: | General Purpose |
| Isolated Power: | Yes |
| Number of Channels: | 5 |
| Inputs - Side 1/Side 2: | 1/4 |
| Channel Type: | Unidirectional |
| Voltage - Isolation: | 3500Vrms |
| Common Mode Transient Immunity (Min): | 10kV/µs |
| Data Rate: | - |
| Propagation Delay tpLH / tpHL (Max): | 25ns, 25ns |
| Pulse Width Distortion (Max): | - |
| Rise / Fall Time (Typ): | - |
| Voltage - Supply: | 4V ~ 5.75V |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Through Hole |
| Package / Case: | 22-DIP Module |
| Supplier Device Package: | 22-PDIP |
