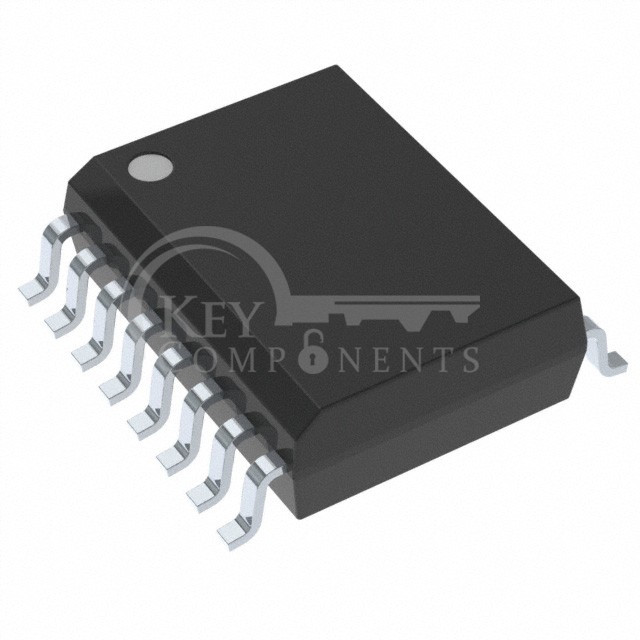

ADUM1400ARWZ-RL

ADUM1400ARWZ-RL

Manufacturer Part ADUM1400ARWZ-RL
Manufacturer Analog Devices Inc.
Description DGTL ISO 2500VRMS 4CH GP 16SOIC
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:4
Inputs - Side 1/Side 2:4/0
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):25kV/µs
Data Rate:1Mbps
Propagation Delay tpLH / tpHL (Max):100ns, 100ns
Pulse Width Distortion (Max):40ns
Rise / Fall Time (Typ):2.5ns, 2.5ns
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
